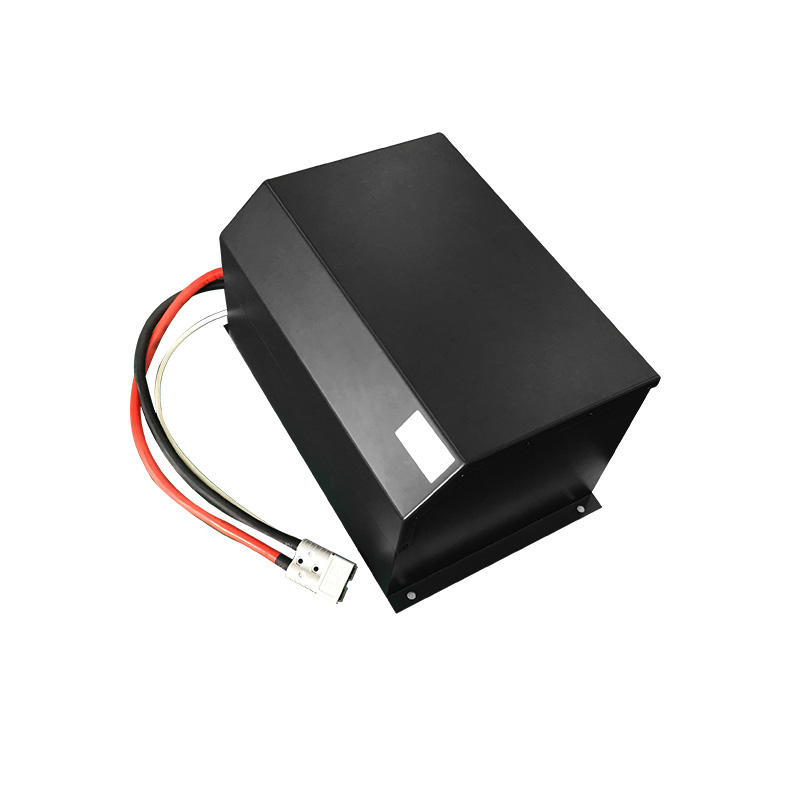

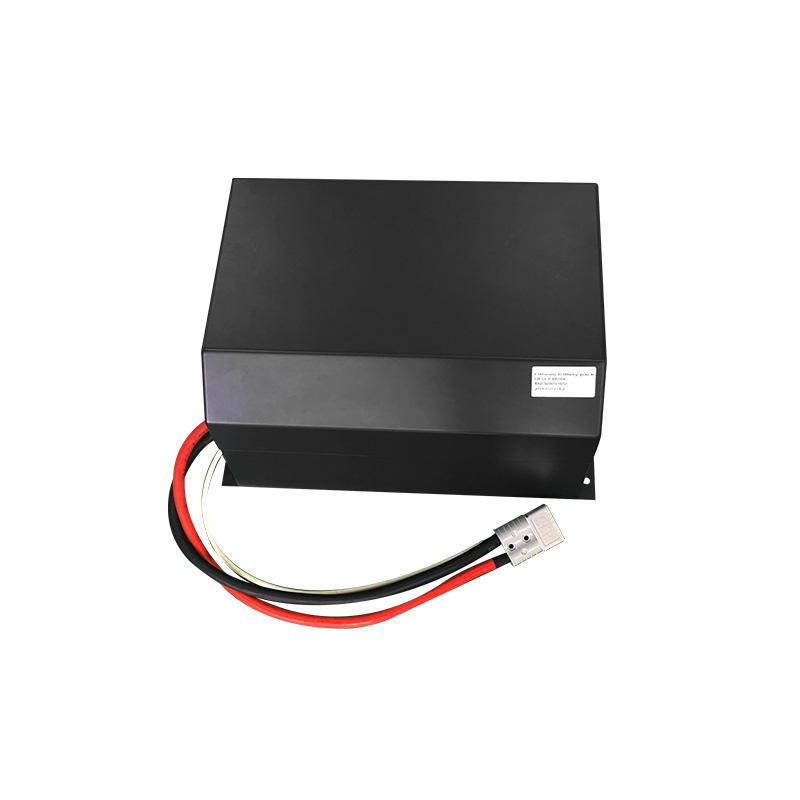

LiFePO4 battery pack 51.2V50Ah 2.56KWh for solar system telecommunication UPS AGV
|
51.2 V 50Ah |
Item |
General parameter |
|
ELECTRICAL SPECIFICATIONS |
Nominal Voltage |
51.2 V |
|
Nominal Capacity |
50 Ah |
|
|
Energy |
2560Wh |
|
|
Internal Resistance |
20mΩ |
|
|
Efficiency |
99% |
|
|
Constant discharge current |
10-50A |
|
|
Constant charge current: |
10-50A |
|
|
Recommend discharge operation temperature range: |
-20~60 |
|
|
Recommend charge operation temperature range |
0~45 |
|
|
MECHANICAL SPECIFICATIONS |
Dimensions (L x W x H) |
275*220*431mm |
|
Weight: |
28kg |
|
|
Case : |
Metal Case |
|
|
Cell Type |
Chemistry Cylindrical/Prismatic- LiFePO4 |
|
|
Maximum Modules in parallel: |
/ |
AGV lithium battery and robot lithium battery, included in Smart bms,which designed and manufactured by our R&D team , With this intelligent BMS, the product is endowed with the performance of overcharging protection, over-discharging protection, and overdrawing current protection and can read all detailed information from pc software , Even under the high temperature, the product can also perform well without any risk of safety
This kind of product has a large capacity per unit and lighter weight than the common lead-acid batteries. It adopts NMC lithium technology to provide high power, high energy densities, and thermal stability. With a protection class of IP54, Each battery cell features high power. It has a longer cycle life of over 1000 times.
Function
Air switch
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Temperature detection function
Balance function
Communicate function
Alarm function
Limiting current (Optional)
Total capacity function (Optional)
Storage history function(Optional)
Reverser protection (Optional)
Dry contact function (Optional)
LED Screen (Optional)
Other function according to your requirements
Key Features
Compact modular integration
Easy connection in series or parallel
Intelligent battery management system
Built-in cell monitoring and balancing
Real-time monitoring
Multi-level safety design
Temperature detection function
Alarm function
Convenient for installation
Abundant communication interfaces
High operational reliability
Can be 15s and 16s
Intelligent BMS and standard BMS for option
We provide one stop solutions to various field and professionaly tech supoprt since 2005 ,Fully automatic intelligent production equipment,
combined with automation control technology and lithium battery
Line vision control technology, smart robots to realize “whole line equipment + robot + software control” Intelligent
Company Features
1. SHENZHEN UFO POWER TECHNOLOGY CO., LTD. pays high attention to R&D and production of motive power battery.
2. In terms of production equipment and technology, SHENZHEN UFO POWER TECHNOLOGY CO., LTD. has unique advantages.
3. SHENZHEN UFO POWER TECHNOLOGY CO., LTD. pays great attention to the cultivation of professional practice ability and innovation consciousness. Inquiry! Exploring the value of motive battery with full gratitude and reverence is of great importance for UFO at present. Inquiry! SHENZHEN UFO POWER TECHNOLOGY CO., LTD. adheres to the faith of boat battery during the development of company. Inquiry! SHENZHEN UFO POWER TECHNOLOGY CO., LTD. always sticks to the principle of lithium ion forklift battery . Inquiry!
